线材生产线

信息来源:本站浏览次数:7502

高速线材生产线采用美国摩根五代轧机和mini轧机,全高炉煤气加热的高效蓄热式加热炉加热钢坯,18架平立交替二辊轧机,10架顶交45°摩根轧机,2架顶交45°mini摩根轧机,能够实现低温轧制、无扭、无张力轧制。全线采用全数字微机监控操作,自动化控制系统采用美国GE公司PLC系统及德国SIEMENS系列交直流数字调速装置,精轧机控制装置采用德国SlEMENS原装全数字负载换相变频器(LCl),属国内领先水平。产品规格:ø5.5mmø26mm盘圆以及ø6.0mmø14mm盘螺,主要生产优质碳素钢、冷镦钢、弹簧钢、轴承钢、易切削钢及建筑钢等产品。

The high-speed wire rod production line is composed of the fifth-generation Morgan rolling mill and mini rolling mill of the United States, a high-efficiency regenerative heating furnace heated by blast furnace gas to heat steel billets, 18 flat-vertical alternating two-high rolling mills, 10 top-crossing 45° Morgan rolling mills, and 2 top-crossing 45° mini Morgan rolling mills. With all these, the production line can finish low-temperature rolling, torsion-free rolling, and tension-free rolling. The whole line is operated under the monitoring of a full-digital microcomputer. The American GE fully automatic PLC system, the SIEMENS AC/DC digital speed regulation device, and the SIEMENS full-digital load-commutated inverter (LCl) for finishing mill control make the production line among the top class in China.  It mainly produces steel wire rods with the specification ranging from ø5.5mm to ø26mm and large coils with the specification ranging from ø6.0mm to ø14mm, specifically including high-quality carbon steel, cold heading steel, spring steel, bearing steel, free-cutting steel and construction steel.

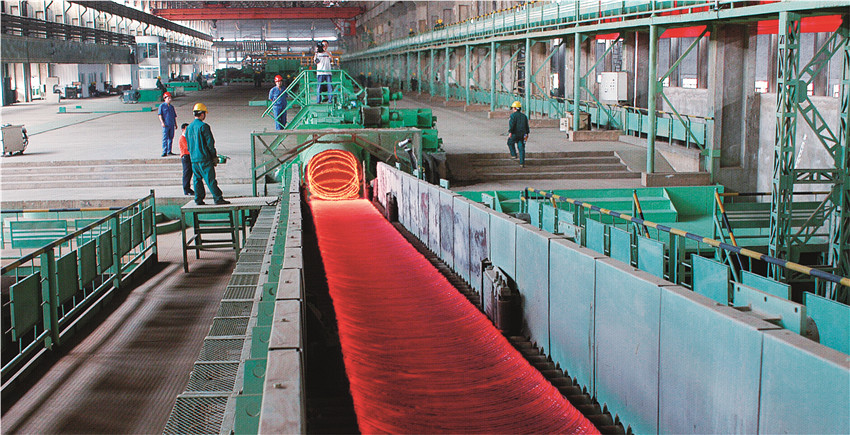

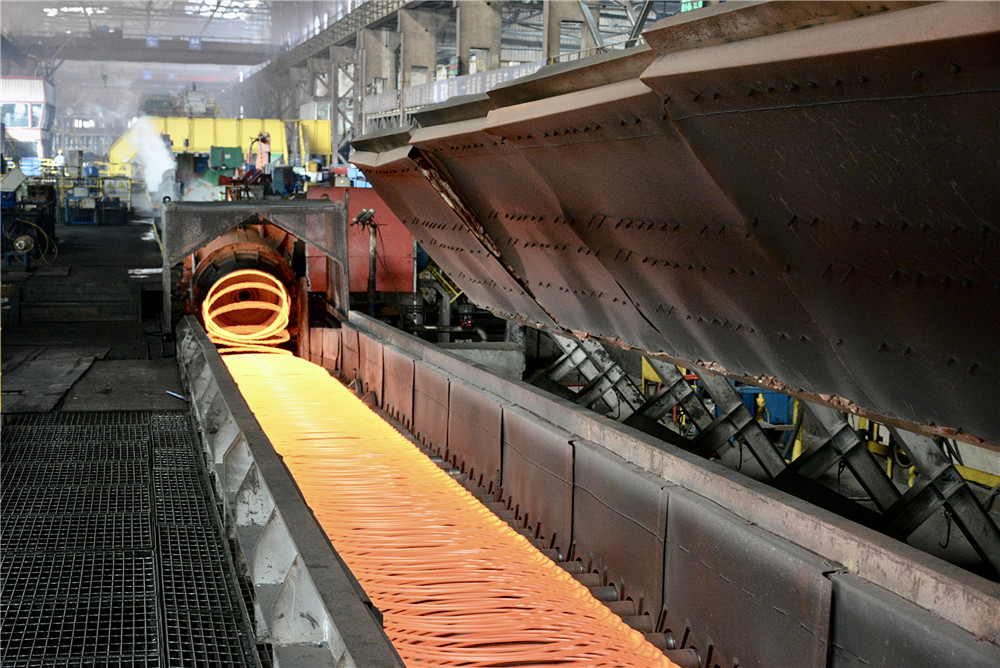

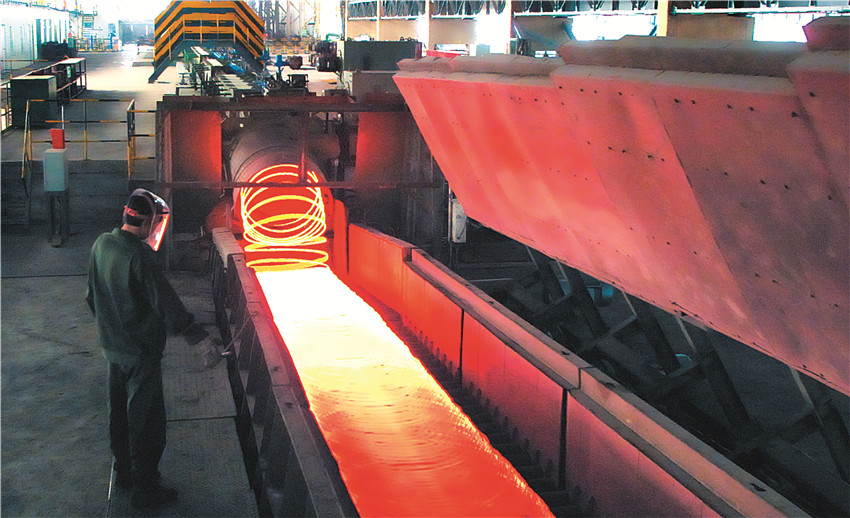

线材生产线  WIRE STOCK PRODUCTION LINE

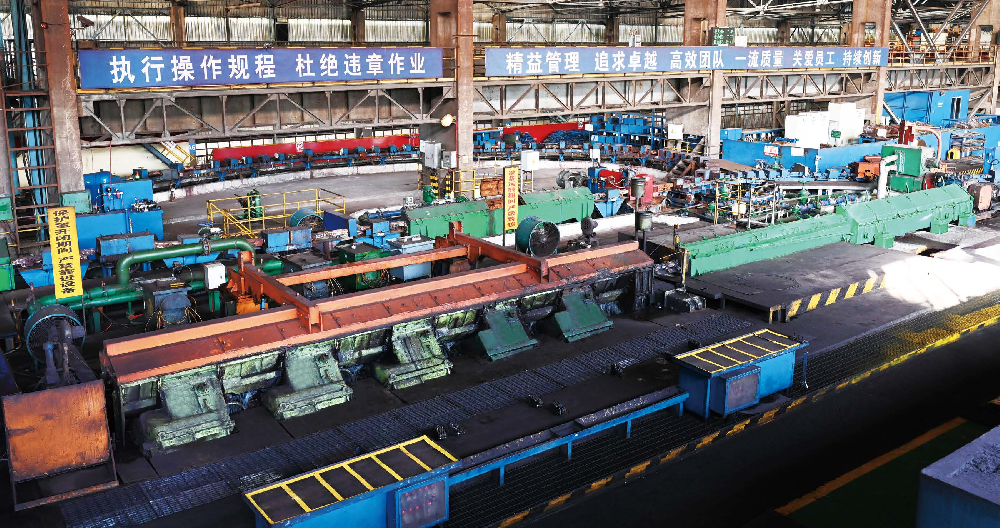

MINI 轧机  MINI ROLLING MILL

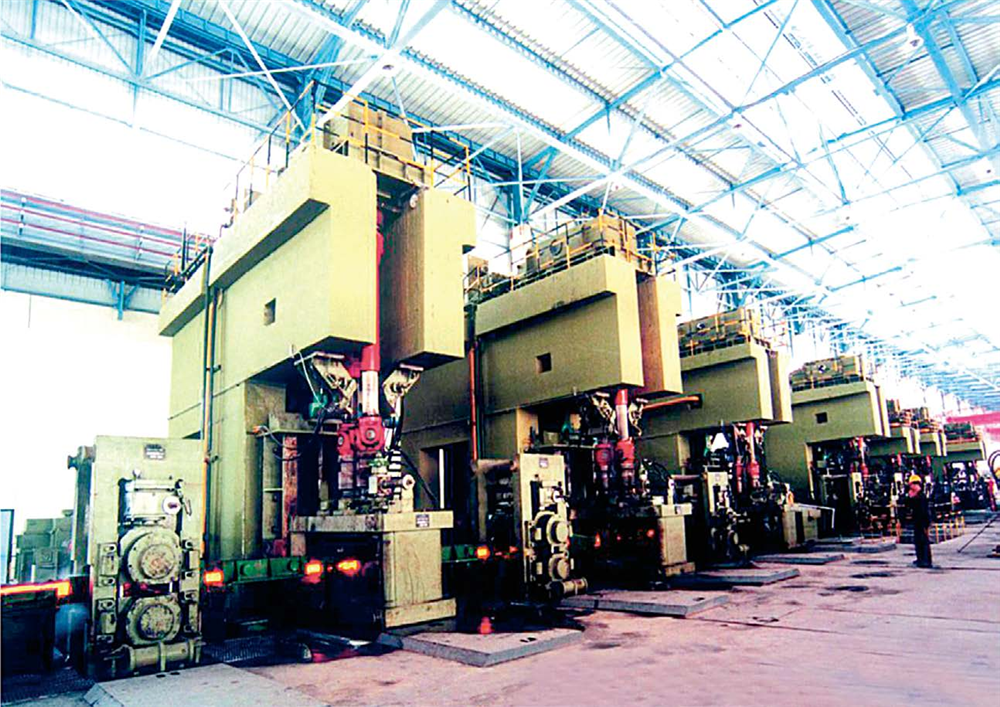

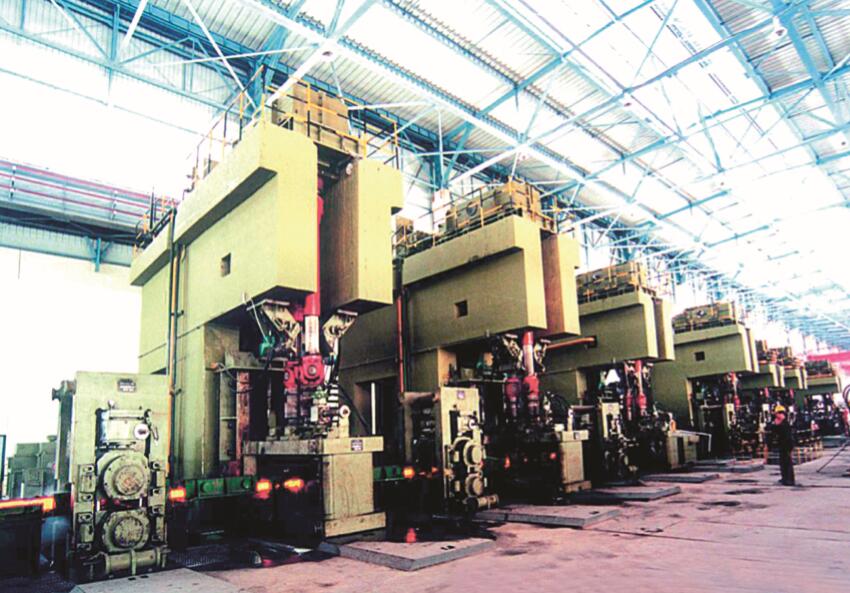

粗轧机  ROUGHING MILL

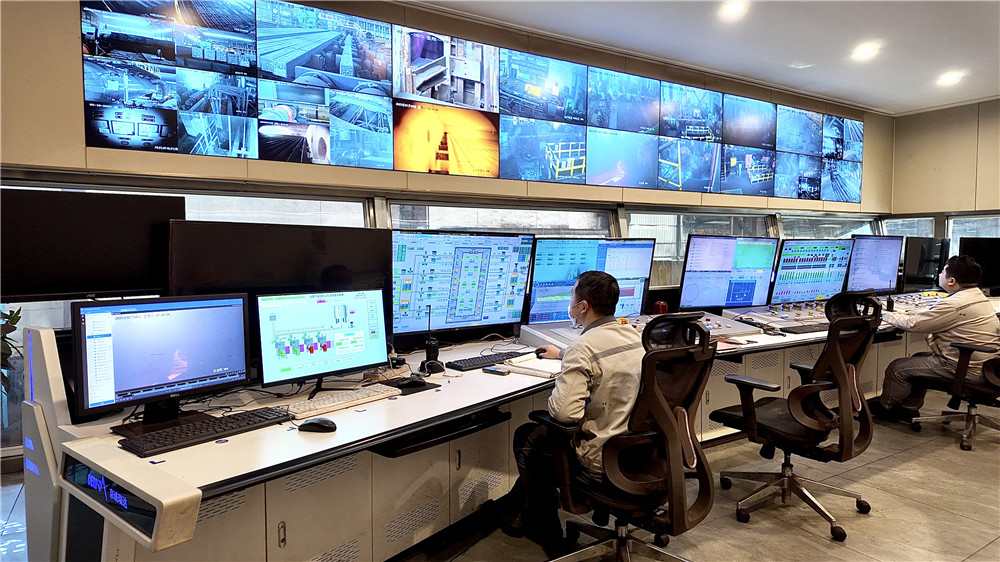

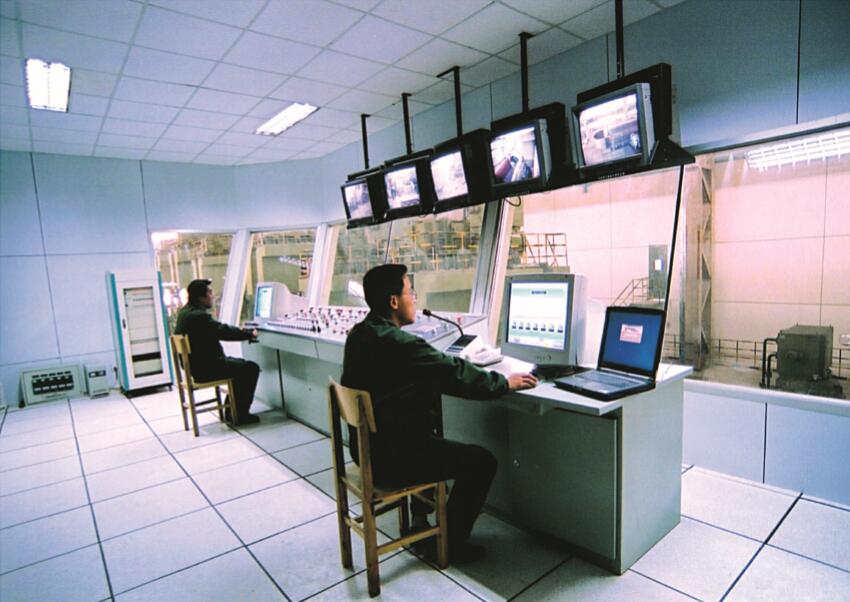

主控室  MASTER CONTROL ROOM
